01
ENVIRONMENTAL RELIABILITY LAB
Damp Heat Test Chamber / Steady state test
IS 9000 PART IV · IEC 60068-2-78 · MIL-STD-810G · QM 333 TEST 5
STEADY STATE TEMPERATURE & CONSTANT HUMIDITY VALIDATION

STEADY STATE
STATUS
≥95% RH
CAPABILITY
IS / IEC / MIL / QM
OPERATIONAL
STEADY STATE SPECS
25°C to 40°C
TEMPERATURE
RANGE
≥95% RH
MAXIMUM RELATIVE
HUMIDITY
1000mm³
MAXIMUM CHAMBER
VOLUME
02
ENVIRONMENTAL RELIABILITY
Damp Heat Steady State Testing
Damp Heat Steady State Testing is an essential environmental testing method used across numerous industries to evaluate the long-term effects of high humidity and temperature on various materials, products, and components. This test is especially relevant in assessing the reliability and performance of electronic and electrical products intended for use in tropical or high-humidity environments. The primary goal is to detect potential failures, corrosion, degradation of materials, or loss of insulation resistance that may result from prolonged exposure to heat and moisture. Our environmental laboratory is equipped with state-of-the-art damp heat test chambers that allow us to carry out steady state testing under carefully controlled conditions, ensuring accurate and repeatable results. This testing service is part of our broader suite of environmental and reliability testing offerings, designed to help manufacturers validate product robustness and meet quality assurance standards.

The test is commonly used in industries such as:
- Automotive and Transportation – to test the durability of on-board electronics, connectors, sensors, and control units.
- Aerospace and Defense – for avionics, mission-critical systems, and humidity-sensitive components.
- Consumer Electronics – to assess corrosion resistance and operational integrity of devices exposed to humid climates.
- Telecommunications – testing circuit boards, enclosures, and connectors for moisture ingress and degradation.
- Industrial Equipment and Instrumentation – validating materials used in harsh operating environments.
- Construction Materials and Coatings – evaluating rust, blistering, and adhesion of materials in high humidity.
03
PARAMETERS & CAPABILITIES
Test Parameters, Conditions & Equipment Capabilities
Our Damp Heat Steady State Test can be conducted under several standardized temperature and humidity combinations. The exact test profile is selected based on the product’s expected application environment and industry standards. We offer the following common test conditions:| Temperature | Humidity (Relative Humidity) | Test Durations |
|---|---|---|
| 30 ± 2°C | 93 ± 3% RH | 12h, 16h, 24h, 48h |
| 30 ± 2°C | 85 ± 3% RH | 12h, 16h, 24h, 48h |
| 40 ± 2°C | 93 ± 3% RH | 12h, 16h, 24h, 48h |
| 40 ± 2°C | 85 ± 3% RH | 12h, 16h, 24h, 48h |
TEST EQUIPMENT CAPABILITIES

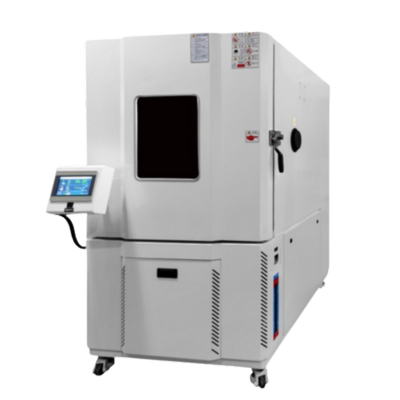

Environmental Test Chambers
Our advanced environmental test chambers are engineered to maintain highly stable and uniform test conditions. Key specifications include:Temperature Range: 25°C to 40°CHumidity Range: ≥95% RH (Relative Humidity)Maximum Chamber Size: 1000 × 1000 × 1000 mm
CALIBRATION & QUALITY CONTROL
Precision & Data Logging
These chambers are calibrated regularly to meet stringent quality standards and ensure consistent performance.Humidity and temperature sensors provide real-time feedback, and data is recorded throughout the test for analysis and reporting.
STANDARDS FOLLOWED:
IS 9000 Part IV
IEC 60068-2-78
MIL-STD-810G
QM 333 Test 5
04
APPLICATIONS
Applications of Damp Heat Steady State Testing
AUTOMOTIVE & TRANSPORTATION
Automotive and Transportation
To test the durability of on-board electronics, connectors, sensors, and control units.
AEROSPACE & DEFENSE
Aerospace and Defense
For avionics, mission-critical systems, and humidity-sensitive components.
CONSUMER ELECTRONICS
Consumer Electronics
To assess corrosion resistance and operational integrity of devices exposed to humid climates.
TELECOMMUNICATIONS
Telecommunications
Testing circuit boards, enclosures, and connectors for moisture ingress and degradation.
INDUSTRIAL EQUIPMENT
Industrial Equipment & Instrumentation
Validating materials used in harsh operating environments.
CONSTRUCTION & COATINGS
Construction Materials & Coatings
Evaluating rust, blistering, and adhesion of materials in high humidity.
